VALEO 186694 Rear Brake Disc | 9 mm Thickness, 247 mm Diameter

Superior Stopping Power with VALEO 186694 Rear Brake Disc

Upgrade your vehicle's braking system with the VALEO 186694 rear brake disc, designed for optimal performance and reliability.

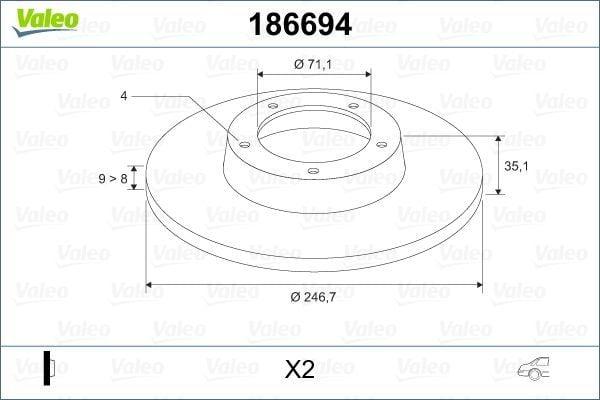

• Technical Specifications:
• Mounting Side: Rear Axle
• Disc Type: Solid
• Outer Diameter: 9.72 inch (247 mm)
• Disc Thickness: 0.35 inch (9 mm)
• Centering Diameter: 2.80 inch (71.1 mm)
• Height: 1.38 inch (35 mm)
• Minimum Thickness: 0.27 inch (7 mm)
• Number of Bolt Holes: 4
• Number of Mounting Pipes: 2
• Additional Information: No bolts included
• Additional Information: No ABS sensor ring included
• Additional Information: Integrated without wheel bearings
• Compliance Mark: ECE-R90
• Weight: 13.86 lb (6.28 kg)

This rear brake disc is compatible with several vehicle models, ensuring proper fit and function.

Installation Instructions:

• Ensure the vehicle is parked on a level surface and secure with wheel chocks.
• Raise the vehicle and remove the wheel to access the brake assembly.
• Detach the old brake disc and replace it with the VALEO 186694 rear brake disc.
• Reassemble and ensure all components are securely fitted before lowering the vehicle.

Choose the VALEO 186694 rear brake disc for a reliable solution to your braking needs!
